Dual Channel RTU

  • Introduction
  • Model: TSRTU1002
    Name: 2G/3G/4G/WiFi RTU

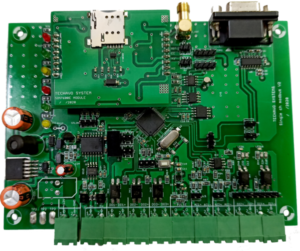

    The Dual Channel RTU is an industrial-grade, reliable, and stable programmable Remote Terminal Unit (RTU). A high-end 32-bit Arm Processor is at the core of the unit. It offers two isolated dry and wet digital inputs, two isolated universal analog inputs, three relay outputs, and one pulse input with noise cancellation. It can auto-operate and monitor the I/O ports with the help of SMS, app, web server, internet connection, timers, and programmed interlocking events.

  • Benefits
  • dual-channel-rtu-benefits

  • Features
    • Intelligent Modbus, IO, Data Logger, 2G,4G GPRS/WiFi/Lora Connectivity
    • 1 x RS-485 port for RTU Modbus, 1x RS232 port for HMI, TTL for Configuration
    • Embedded ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-built watchdog
    • Wide range power supply 9~36VDC with over voltage and phase-reversal protection
    • 2 digital inputs, compatibles dry and wet contact, one of it can be used as pulse counter
    • 2 analog inputs, 12bit resolution, compatibles 0/4~20mA, 0~5VPoll Both RS485 RTU Modbus and TCP Modbus (Multiple IPs)
    • Configure and Read Multiple Slave IDs Upto 30, Selectable Register Address data upto 30.
    • Parameter Data type, Byte Swapping Conversion and Scaling factor enabled
    • Transparent Modbus or Device Inbuilt Polling – Formatted to (ASCII/HEX/RawHEX)
    • Smart Inbuilt Data Logger works during Network and Server Disconnection
    • Logger Sends offline data once Network and Server Connected
    • Upto 6 Authorized numbers list for command and Configuring
    • Configurable TCP/Http/MQTT/Https Mode, GET/POST Methods
    • Configurable CSV/JSON Format for Parameter Packetization
    • Remote Configuration through SMS/GPRS/Server IP Commands
    • Alerts: Power Failure Restore, Low battery Shutdown, Digital IN Changes, Device Reset
    • OTA (Over The Air) Firmware upgrade, Device Configuration update
    • LED & LCD indicators to provide GSM, GPRS, Signal, Modbus Tx/Rx COM Status
    • Configurable Server Connection: Connects on Demand or Always Connected
    • Keep Alive command to maintain socket connection
  • Application Area
    • DG Set Monitoring
    • CCMS
    • Cold Storage
    • Smart City
    • Energy Management
    • Pump Management

    How It Works
